Configuring Adobe Launch in Blend

Blend administrators with access to the Setup Panel can update Adobe tags and events. Blend allows Adobe tags to load within the Blend environment so that events are passed to Adobe Launch for reporting purposes.

• Setting Up Adobe Launch in Your Blend Tenant
• Data Elements Configuration
• Rules Configuration

Setting Up Adobe Launch in Your Blend Tenant

Data elements make up your data dictionary within Launch as well as other Adobe products. The dictionary serves as the data source for building out rules and as a library for additional tracking or analytics solutions (e.g. Adobe Analytics, Google Analytics, etc).

Blend provides a predetermined set of user-defined data elements that can be configured within Adobe Launch. The following procedure summarizes the prescribed set of steps to construct a data element within Launch.

1. Navigate to the Data Elements tab
2. Select Add Data Element
3. Supply Data Element with an applicable name (e.g. Loan Purpose Type) and provide the Extension, Data Element Type, & Storage Duration
4. Save data element and repeat for each additional data element



Data Elements Configuration

The following is a list of trigger logic configurations for a standard Blend application. Applications such as those created on Bend Builder generate unique application flow, which may require additional consultation with Blend to determine workflow_event values.

• Extension: Core
• Data Element Type: Custom Code
• Storage Duration: Sessions

Rules Configuration

Rules are created within Adobe Launch and associated with Events, with or without Conditions, and Actions. Launch Rules allow you to define criteria that when met, triggers extension(s), script(s), or client-side code. A Rule is comprised of a combination of Events, Conditions, and Actions.

The following procedure outlines the set of steps to build these components within Adobe Launch.

1. Log into Adobe Experience Cloud and select the Launch application
2. Select the Property for the website you are seeking to add Rules.
   1. If you do not yet have a Property, please refer to the following article: https://docs.adobe.com/content/help/en/core-services-learn/implementing-in-websites-with-launch/configure-launch/launch.html

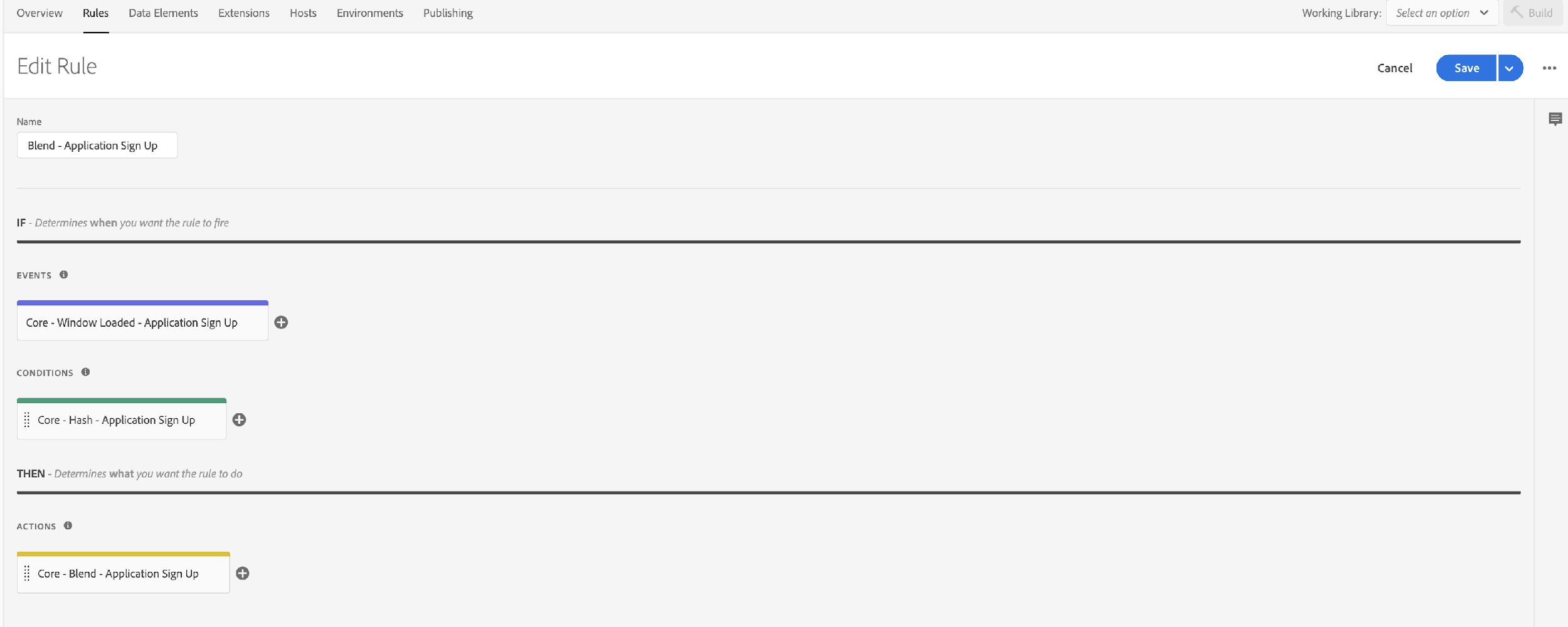

3. Select Rules tab and click on the Add Rule button
4. Provide your Rule with an applicable Name (e.g. ‘Blend – Application Sign Up’)
5. Supply your Rule with the relevant Event(s), Condition(s), and Action(s)
   1. EVENTS: Qualifies the IF portion a Rule. An Extension, Event Type, Name, and Order (priority) will need to be provided
   2. CONDITIONS: Should be created when wanting to further narrow your EVENTS criteria
   3. ACTIONS: Qualifies the THEN portion of a Rule. What you want Launch to perform if EVENTS & CONDITIONS criteria are met
6. Save rule and repeat to create additional rules



The following is a list of trigger logic configurations for a standard Blend application. Applications such as those created on Bend Builder generate unique application flow, which may require additional consultation with Blend to determine workflow_event values.

• Extension: Core
• Data Element Type: Custom Code
• Storage Duration: Sessions
